產品名稱：進口125NHG00B-690 690V/125A

常用型號：

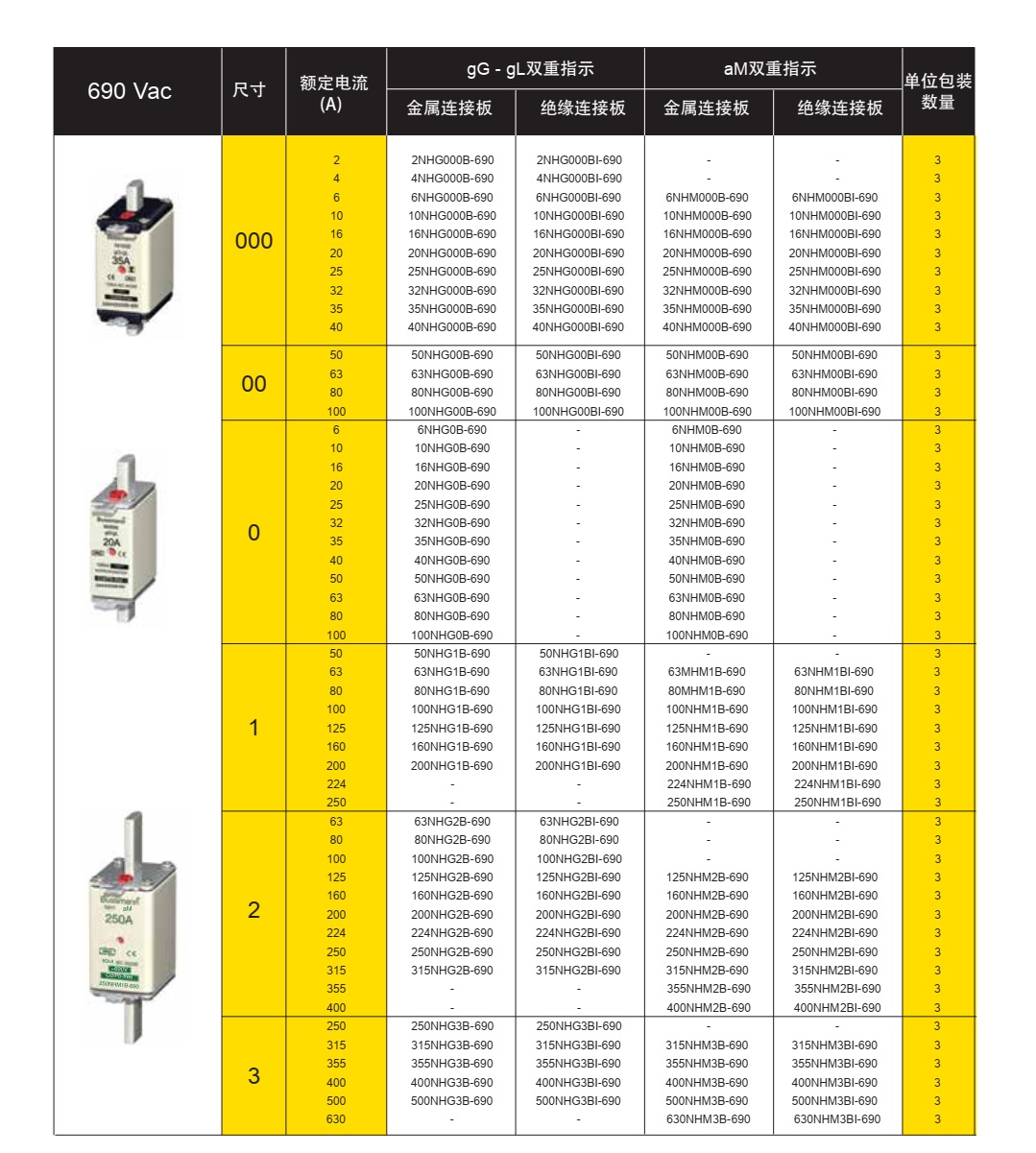

690Vac  NH DIN _NHG_B低壓熔斷器

Size: 000、00及0

2NHG000B-690 4NHG000B-690 6NHG000B-690 10NHG000B-690 16NHG000B-690 20NHG000B-690

25NHG000B-690 32NHG000B-690 35NHG000B-690 40NHG000B-690 50NHG00B-690 63NHG00B-690 80NHG00B-690 100NHG00B-690 125NHG00B-690 160NH00G-690 6NHG0B-690 10NHG0B-690 16NHG0B-690 20NHG0B-690 25NHG0B-690 32NHG0B-690 35NHG0B-690 40NHG0B-690 50NHG0B-690 63NHG0B-690 80NHG0B-690 100NHG0B-690

Size: 01及1

6NHG01B-690 50NHG1B-690 63NHG1B-690 80NHG1B-690 100NHG1B-690 125NHG1B-690

160NHG1B-690 200NHG1B-690 250NH1G-690

Size: 2及3

63NHG2B-690 80NHG2B-690 100NHG2B-690 125NHG2B-690 160NHG2B-690 200NHG2B-690 224NHG2B-690 250NHG2B-690 315NHG2B-690 250NHG3B-690 315NHG3B-690 355NHG3B-690

400NHG3B-690 425NHG3B-690 500NHG3B-690 630NH3G-690

基本介紹：

Bussmann提供的具有雙重指示功能的NH熔斷器將頂部與中部指示系統融為一體。不論熔斷器位于熔斷器底座、熔斷器開關組或是垂直熔斷器安裝軌、也不論用于何種用途、所有用戶都將受益于這種具有雙重互補指示功能、且性能可靠有效的NH熔斷器

產品特性：

高分?jǐn)嗄芰?/p>

包括400Vac，500Vac，690Vac電壓等級

提供多種絕緣接插件

雙重指示

執行標準：

符合CDE0636-1標準

符合DIN 43 620-1-4標準

符合國際電工委標準IEC60269及EN60269標準

認證：

CCC中國國家產品強制認證

CE歐盟產品強制認證

同系列其他型號：

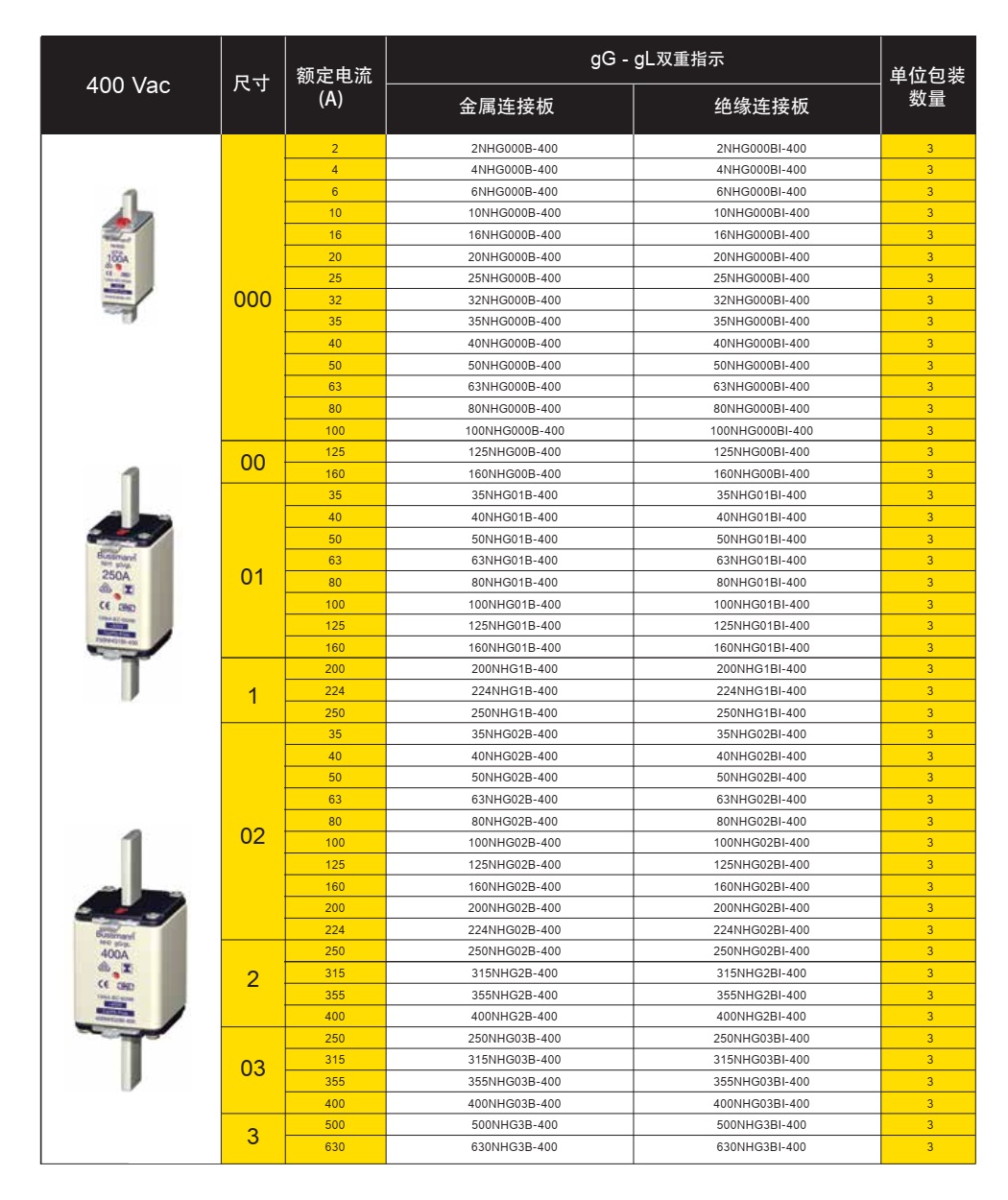

400Vac NH DIN _NHG_B低壓熔斷器

Size: 000及00

2NHG000B-400 4NHG000B-400 6NHG000B-400 10NHG000B-400 16NHG000B-400 20NHG000B-400 25NHG000B-400 32NHG000B-400 35NHG000B-400 40NHG000B-400 50NHG000B-400 63NHG000B-400 80NHG000B-400 100NHG000B-400 125NHG00B-400 160NHG00B-400

Size: 01及1

10NHG01B-400 35NHG01B-400 40NHG01B-400 50NHG01B-400 63NHG01B-400 80NHG01B-400 100NHG01B-400 125NHG01B-400 160NHG01B-400 200NHG1B-400 224NHG1B-400 250NHG1B-400

Size: 02及2

35NHG02B-400 40NHG02B-400 50NHG02B-400 63NHG02B-400 80NHG02B-400 100NHG02B-400 125NHG02B-400 160NHG02B-400 200NHG02B-400 224NHG02B-400 250NHG02B-400 315NHG2B-400 355NHG2B-400 400NHG2B-400 630NHG2B-400

Size: 03及3

250NHG03B-400 315NHG03B-400 400NHG03B-400 500NHG3B-400 630NHG3B-400

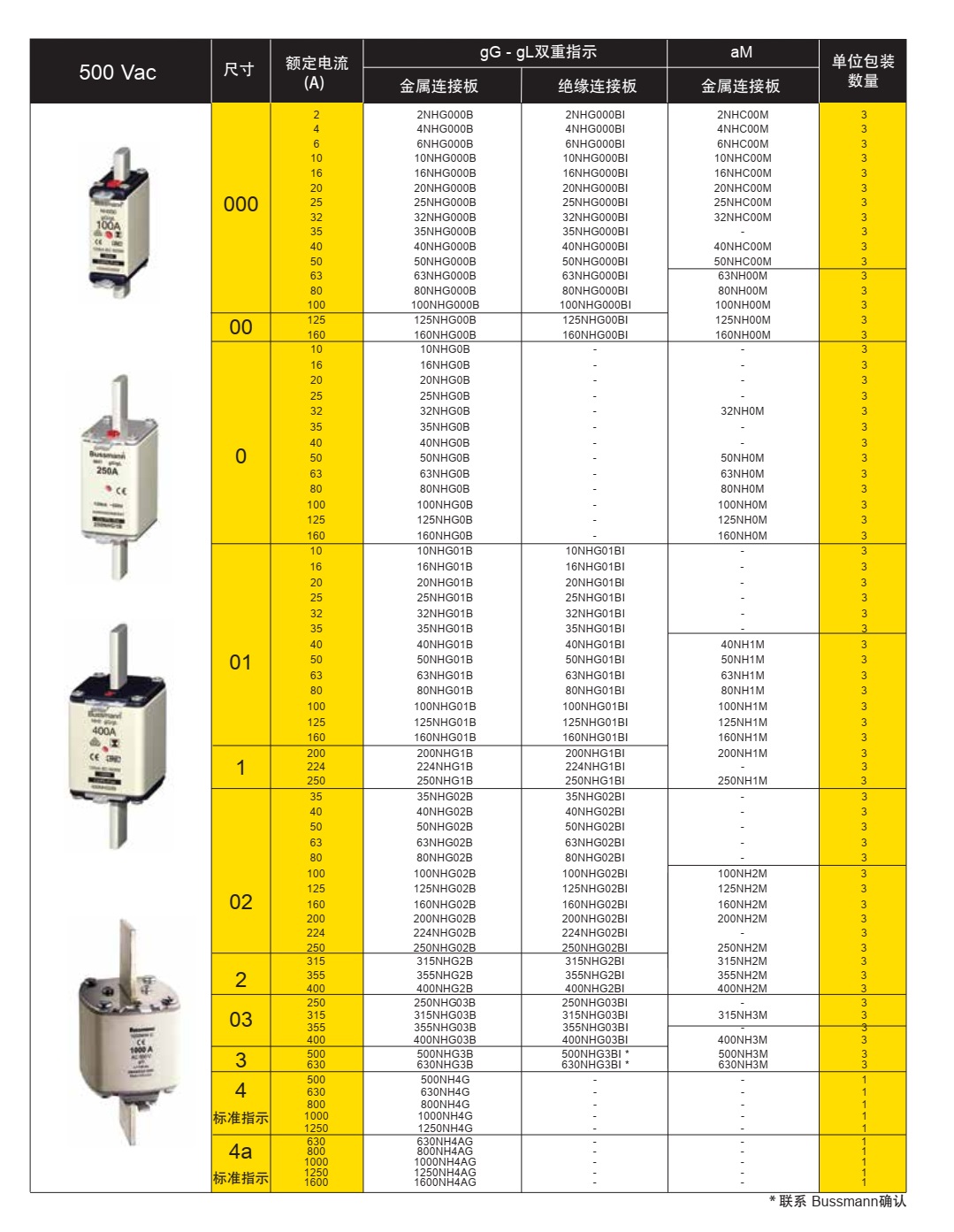

500Vac gG/gL型 NH DIN _NHG_B低壓熔斷器

Size: 000、00及0

2NHG000B 4NHG000B 6NHG000B 10NHG000B 16NHG000B 20NHG000B 25NHG000B 32NHG000B

35NHG000B 40NHG000B 50NHG000B 63NHG000B 80NHG000B 100NHG000B 125NHG00B 160NHG00B 10NHG0B 16NHG0B 20NHG0B 25NHG0B 32NHG0B 35NHG0B 40NHG0B 50NHG0B 63NHG0B 80NHG0B 100NHG0B 125NHG0B 160NHG0B

Size: 01及1

10NHG01B 16NHG01B 20NHG01B 25NHG01B 32NHG01B 35NHG01B 40NHG01B 50NHG01B 63NHG01B 80NHG01B 100NHG01B 125NHG01B 160NHG01B 200NHG1B 224NHG1B 250NHG1B 315NHG1B* 355NHG1B*

Size: 02及2

35NHG02B 40NHG02B 50NHG02B 63NHG02B 80NHG02B 100NHG02B 125NHG02B 160NHG02B

200NHG02B 224NHG02B 250NHG02B 315NHG2B 355NHG2B 400NHG2B 425NHG2B

Size: 03及3

250NHG03B 315NHG03B 355NHG03B 400NHG03B 425NHG3B 500NHG3B 630NHG3B

Size: 4標準指示

500NHG4G 630NHG4G 800NHG4G 1000NHG4G 1250NHG4G

500Vac  am型 NH DIN NH低壓熔斷器

50NHM00B 63NHM00B 80NHM00B 100NHM00B 160NHM00B 20NHM0B 32NHM0B 50NHM0B 63NHM0B 80NHM0B 100NHM0B 63NHM1B 80NHM1B 100NHM1B 125NHM1B 160NHM1B 200NHM1B 250NHM1B 400NHM2B 630NHM3B

690Vac  am型 NH DIN NH低壓熔斷器

6NHM000B-690 10NHM000B-690 16NHM000B-690 20NHM000B-690 25NHM000B-690 32NHM000B-690 35NHM000B-690 40NHM000B-690 6NHM0B-690 10NHM0B-690 16NHM0B-690 125NHM2B-690 200NHM2B-690 250NHM2B-690 315NHM2B-690 355NHM2B-690 355NHM3B-690 400NHM3B-690 500NHM3B-690

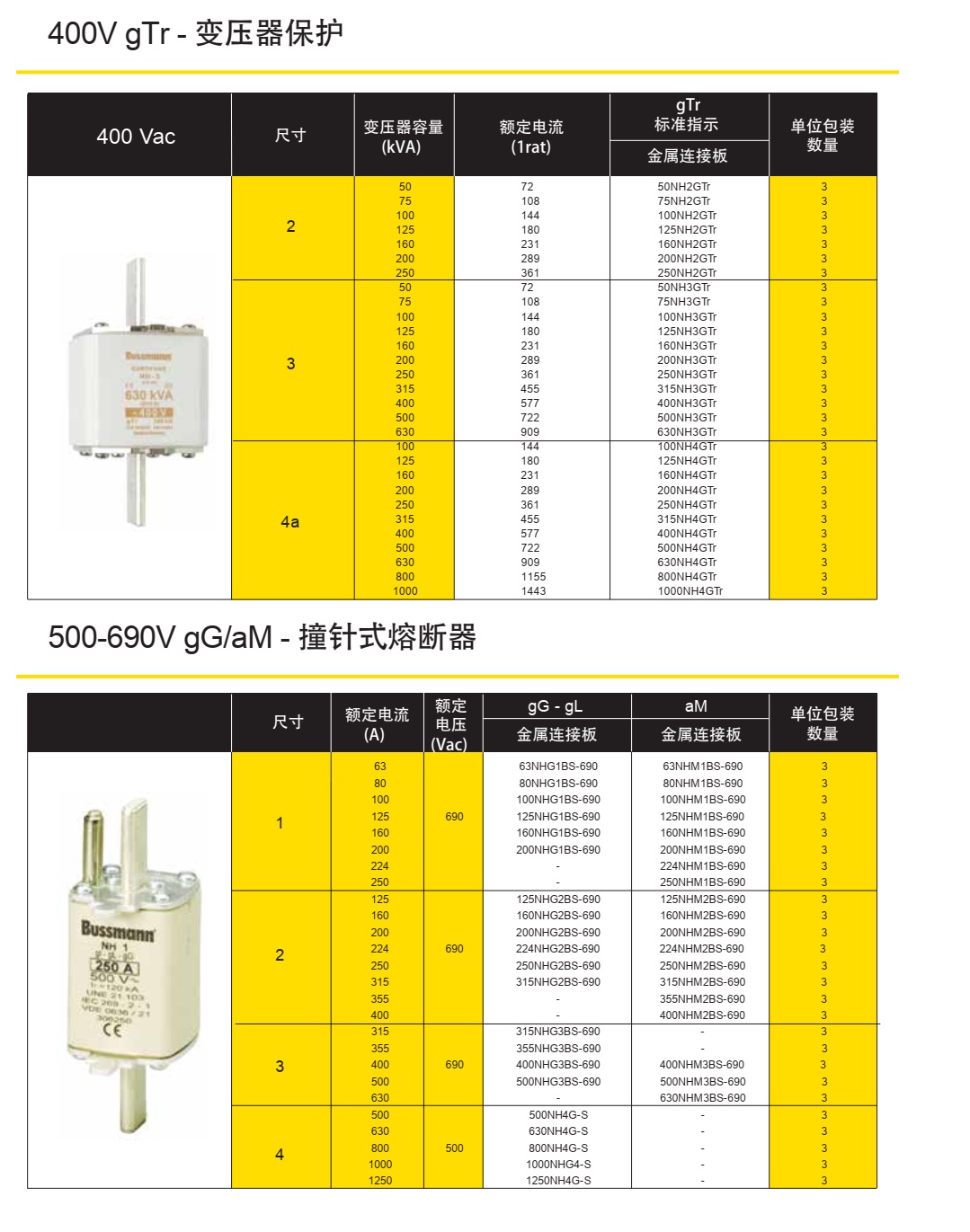

400V gTr  Protection of Transformers變壓器保護NH熔斷器

50NH2GTR 75NH2GTR 100NH2GTR 125NH2GTR 160NH2GTR 200NH2GT 250NH2GTR 400NH2GTR

50NH3GTR 100NH3GTR 125NH3GTR 160NH3GTR 200NH3GTR 250NH3GTR 315NH3GTR 400NH3GTR 500NH3GTR 630NH3GTR 100NH4GTR 125NH4GTR 160NH4GTR 200NH4GTR 250NH4GTR 315NH4GTR 400NH4GTR 500NH4GTR 630NH4GTR 800NH4GTR 1000NH4GTR
